Northern Pin Oak
Scientific name: Quercus ellipsoidalis
Overview
Northern Pin Oak is a medium-sized deciduous hardwood native to the north-central United States and portions of the Great Lakes region. Quercus ellipsoidalis belongs to the Fagaceae family and the red oak group. It is particularly associated with dry, sandy, acidic, and relatively nutrient-poor soils where some larger oak species may be less competitive.

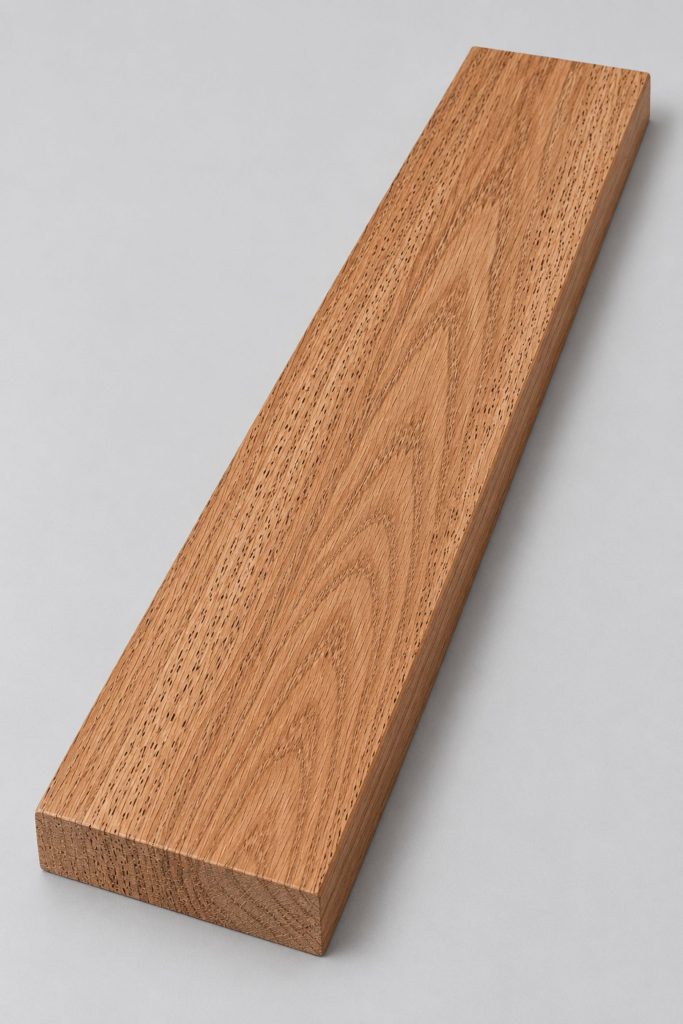

The wood generally ranges from light to medium reddish brown, with paler sapwood and the pronounced open grain characteristic of red-group oaks. Northern Pin Oak is hard, moderately heavy, and strong, with woodworking properties broadly similar to other red oaks.
The species is not commonly separated in commercial lumber markets. Harvested logs are generally incorporated into the broader Red Oak category and may be used for furniture, flooring, cabinetry, interior millwork, pallets, general construction, and other typical red oak applications.
Quick Facts
- Common Name: Northern Pin Oak
- Alternate Common Name(s): Hill’s Oak, Jack Oak
- Scientific Name: Quercus ellipsoidalis
- Region: North American Hardwoods
- Tree Size: Approximately 40–70 ft (12–21 m) tall, occasionally larger, with trunks commonly 1–2.5 ft (0.3–0.75 m) in diameter
- Average Dried Weight: Approximately 43–45 lbs/ft³ (690–720 kg/m³), with natural variation
- Janka Hardness: Approximately 1,200–1,300 lbf, with limited species-specific standardized data
- Grain: Generally straight
- Texture: Medium to coarse
Identification Characteristics

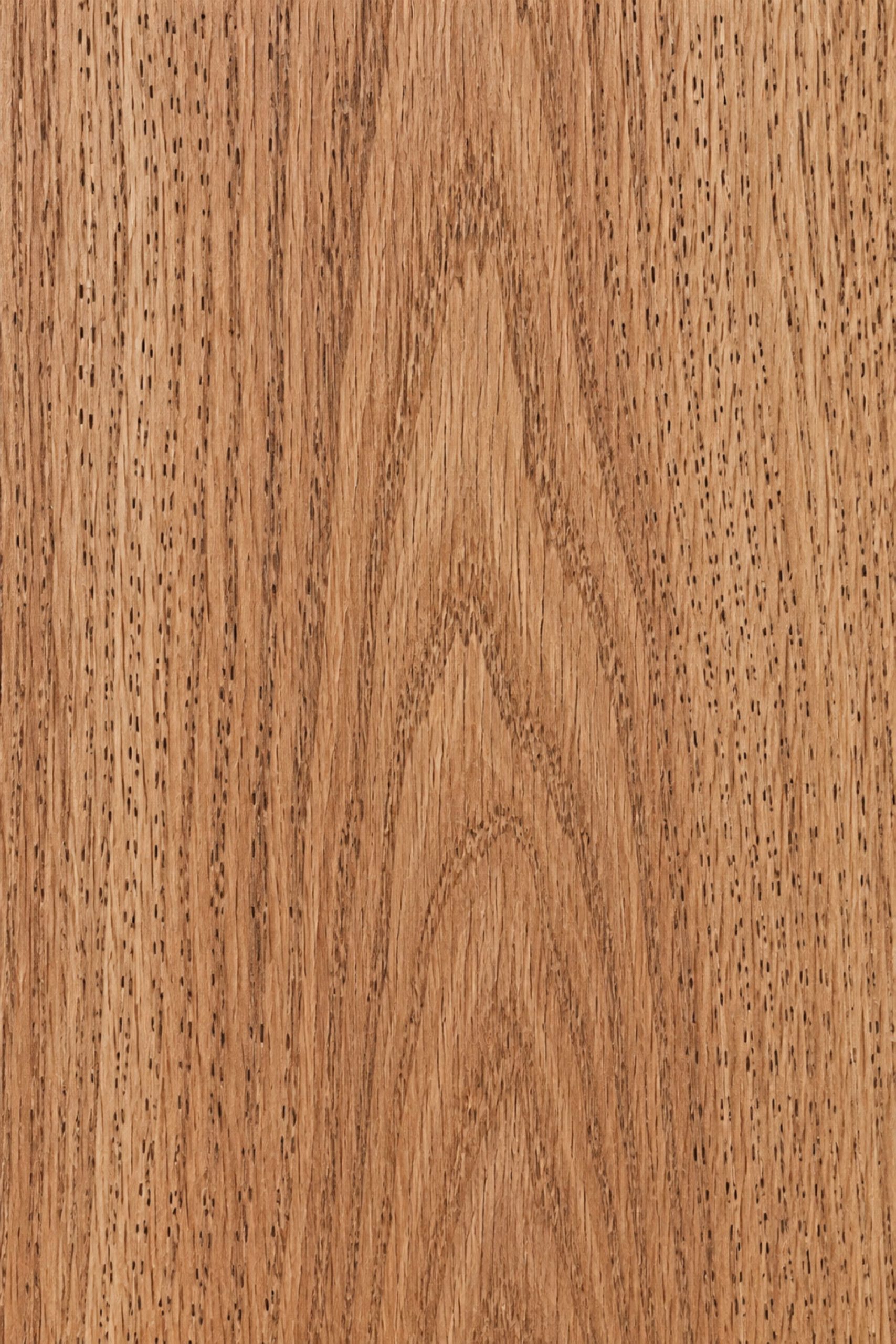

Northern Pin Oak generally produces light to medium reddish-brown heartwood surrounded by pale cream to light brown sapwood. As a member of the red oak group, the wood contains relatively large open earlywood pores that contribute to its pronounced grain.
Grain is typically straight, although localized irregularities may occur around branches and knots. Quarter-sawn surfaces can display ray fleck, while examination of the end grain is particularly useful for distinguishing red-group oak from white-group species.
Key identification traits include:
- Light to medium reddish-brown heartwood
- Pale cream to light brown sapwood
- Generally straight grain
- Medium to coarse texture
- Large open earlywood pores
- Prominent growth rings
- Potential ray fleck on quarter-sawn surfaces
Working Properties
Northern Pin Oak generally responds well to conventional woodworking tools. Its moderate-to-high hardness provides good wear resistance while remaining manageable with properly sharpened equipment.
The coarse, open grain can require additional preparation when a completely smooth surface is desired. Stains penetrate readily, although the pronounced pore structure remains visible unless a grain filler is used.
- Machines well with sharp tools
- Turns reasonably well
- Sands effectively
- Glues satisfactorily
- Accepts stains readily
- Responds well to clear finishes
- Pre-drilling can reduce splitting near edges
Safety Note
Oak wood dust may cause skin, eye, or respiratory irritation in sensitive individuals. Repeated exposure to hardwood dust should be minimized.
Appropriate dust collection, eye protection, and respiratory protection are recommended during sawing, routing, turning, and sanding.
Common Uses
Its strength, hardness, pronounced grain, and similarity to other commercial red oaks make Northern Pin Oak suitable for numerous woodworking applications, including:
- Flooring
- Furniture
- Cabinetry
- Interior millwork
- Architectural trim

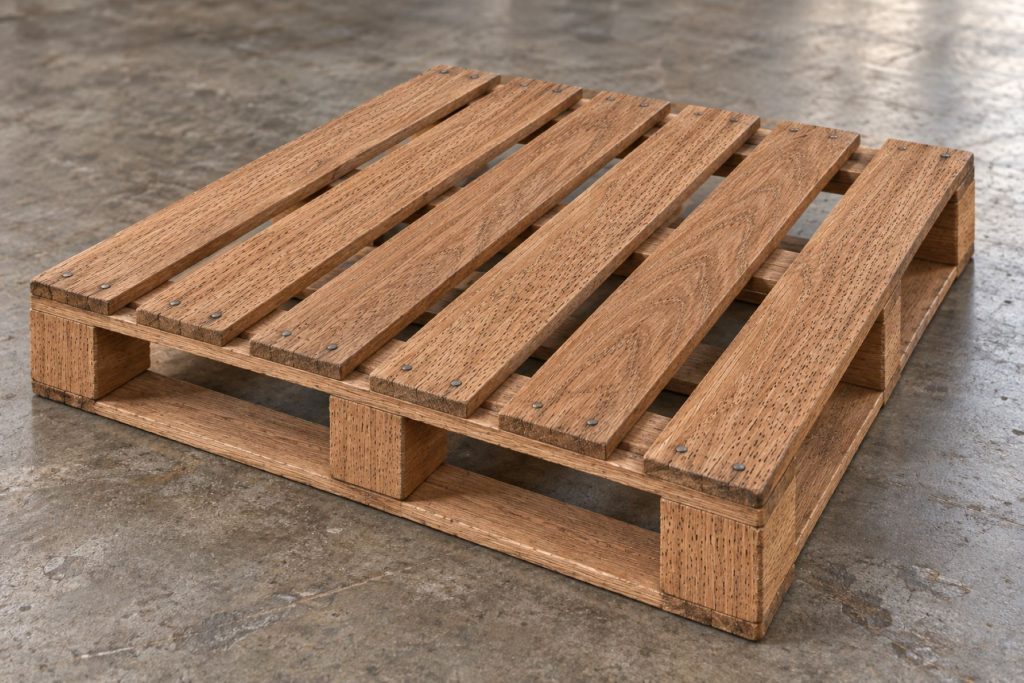

- Pallets
- Crates
- General construction
- Utility woodworking
- Wood turning
Sustainability & Notes
Northern Pin Oak occupies a relatively specialized ecological niche compared with many other eastern North American oaks. It is particularly well adapted to dry, sandy, acidic soils and is commonly associated with oak savannas, pine barrens, sandy uplands, and similar environments in the Great Lakes region.
Its acorns provide food for deer, squirrels, birds, and other wildlife, while mature trees contribute habitat and structural diversity to native forests and savannas.
Northern Pin Oak can hybridize with related red-group oaks, which can sometimes complicate botanical identification where their natural ranges overlap.
Commercially harvested wood is normally marketed as Red Oak rather than specifically identified as Northern Pin Oak.
Comparative Notes & Related Species
Black Oak – Another member of the red oak group producing reddish-brown, open-grained timber that can be commercially marketed with other red oaks.
Water Oak – A southeastern red oak adapted to considerably wetter environments, providing an interesting ecological comparison with the dry-site Northern Pin Oak.
Southern Red Oak – Another red-group species whose lumber shares many of the open-pored grain and woodworking characteristics associated with Northern Pin Oak.
Related Guides
Oak Species Guide
Explore the diversity of Quercus and compare Northern Pin Oak with Black Oak, Water Oak, Northern Red Oak, Southern Red Oak, Swamp White Oak, Chestnut Oak, Live Oak, and other oak species.
Red Oak vs. White Oak
Learn how red-group and white-group oaks differ in pore structure, tyloses, durability, appearance, identification characteristics, and woodworking applications.
Density & Hardness Explained (Janka Scale Guide)
Learn how density and Janka hardness describe different wood properties and how each influences weight, dent resistance, machining, and practical performance.
How to Identify Exotic Hardwood by Grain Pattern
Explore how grain direction, pore arrangement, rays, texture, figure, and other visible characteristics can assist with wood identification.
Finishing Oils vs. Polyurethane on Exotic Species
Compare common finishing systems and learn how different finishes influence grain appearance, surface protection, color, and long-term performance.
Compare Wood Properties
See how this species ranks in density and hardness using our Wood Density & Janka Hardness Chart. You can also explore Hardest Woods, Softest Woods, and Most Dense Woods for quick comparisons.
Collector Notes
Northern Pin Oak is particularly useful in a documented oak collection because it represents a red-group species adapted to dry, sandy environments rather than the richer forest sites associated with many major timber oaks.
A positively identified specimen displayed alongside Black Oak, Water Oak, Northern Red Oak, and Southern Red Oak can demonstrate how visually similar woods may originate from species with substantially different ecological requirements.
Adding Swamp White Oak and Chestnut Oak provides an additional comparison between red-group and white-group wood anatomy.
Collector specimens should retain the scientific name Quercus ellipsoidalis, geographic origin, acquisition date, and source whenever available.
